Extrusion is a manufacturing process where material is forced through a shaped opening (a die) to create a desired cross-sectional profile. Its used to produce a wide range of products, including metal shapes, plastic profiles, and even some food items. The process can be performed with various materials and at different temperatures, leading to diverse applications.
Heres a more detailed breakdown:
1. How it Works:
A material (e.g., metal billet, plastic pellets, food ingredients) is heated and then forced under pressure through a die.
The dies shape determines the final profile of the extruded product.
The extruded material is then cooled, straightened, and cut to the desired length.
2. Types of Extrusion:
Direct Extrusion:The die is stationary, and a ram pushes the material through it.
Indirect Extrusion:The die is attached to the ram and moves against a stationary billet.
Hot Extrusion:Performed at high temperatures, often above the materials recrystallization temperature.
Cold Extrusion:Performed at room temperature or slightly elevated temperatures.
Food Extrusion:Uses heat and pressure to cook and shape food products, like pasta and breakfast cereals.
3. Applications:
Metal Extrusion:

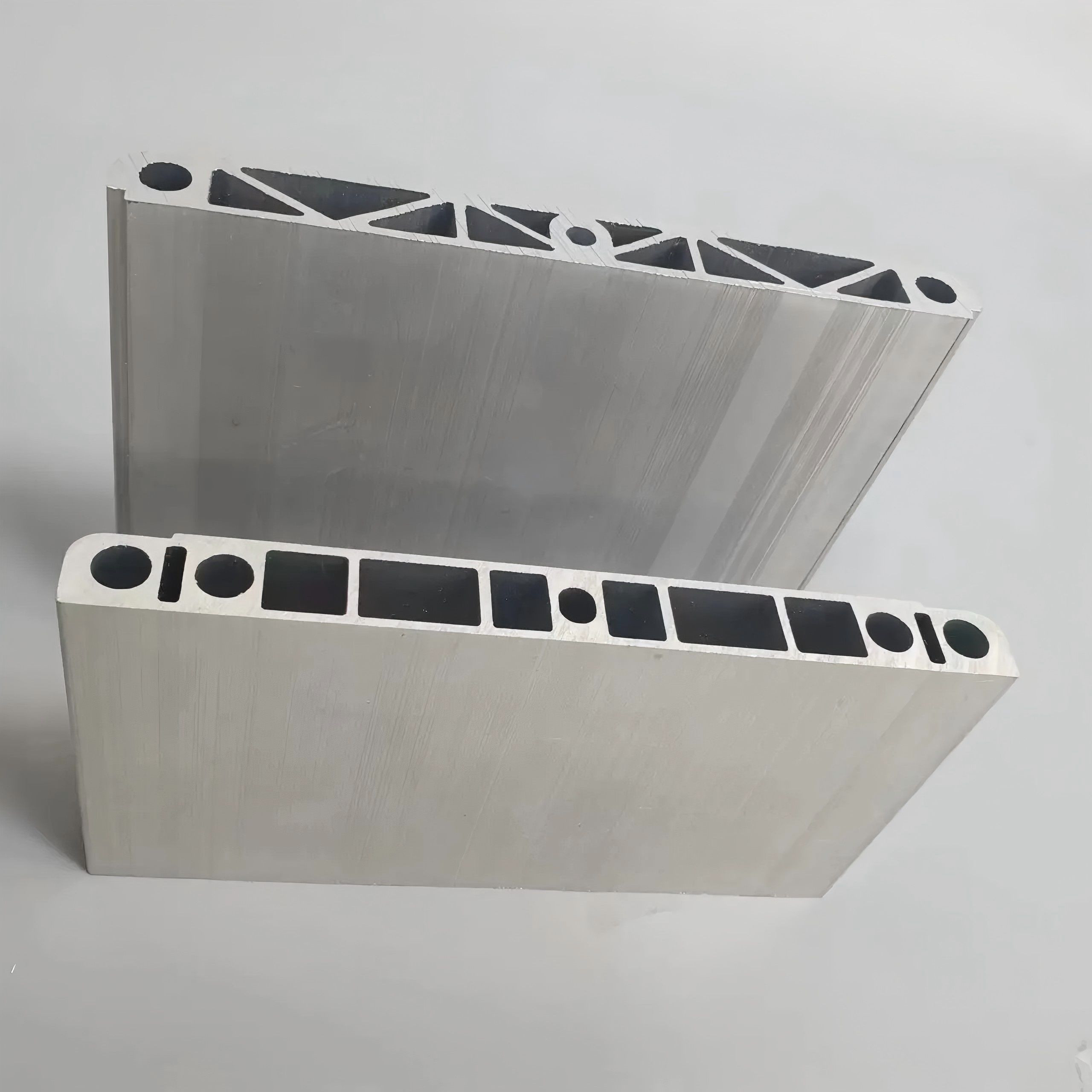

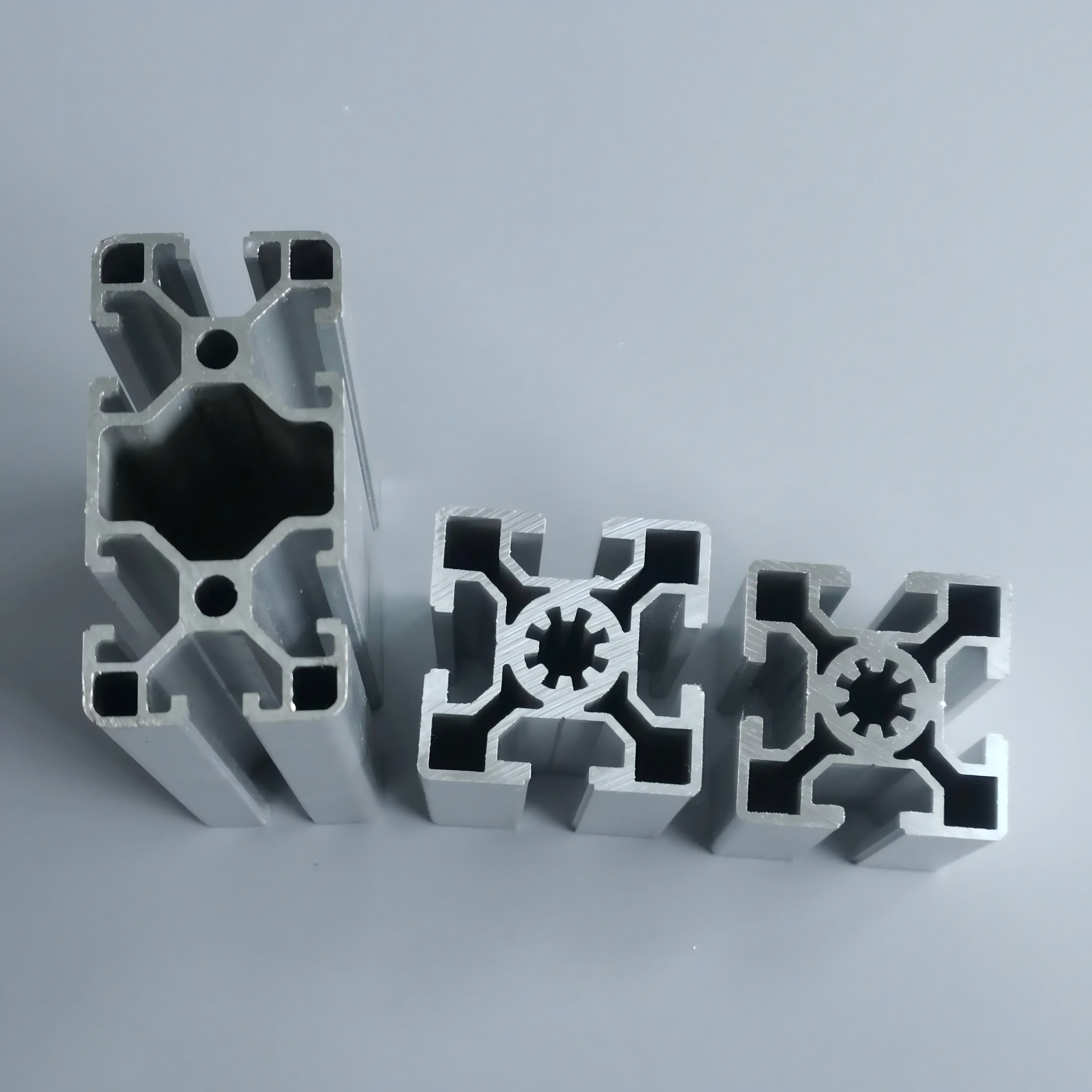

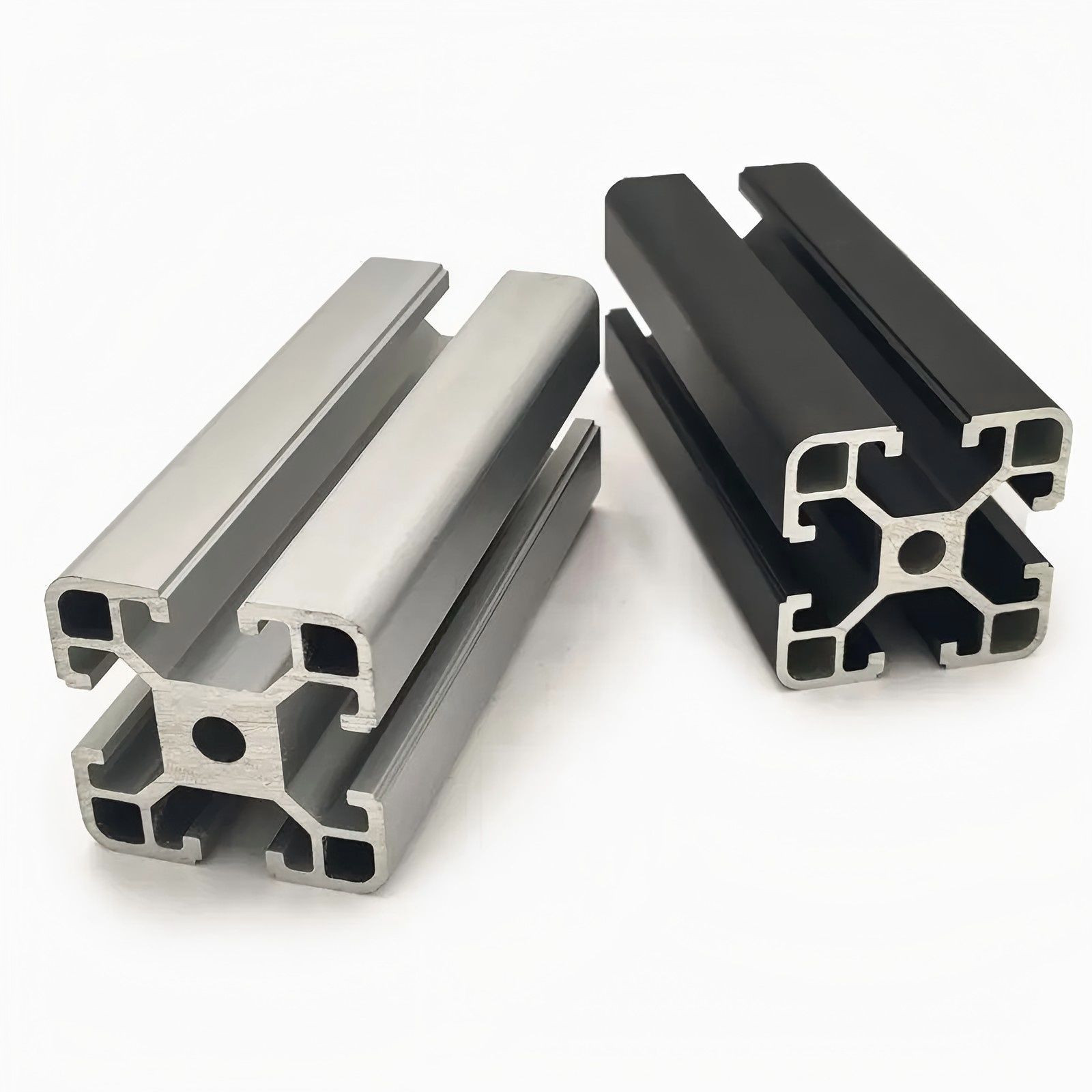

Used for creating various shapes like tubes, rods, and complex profiles for construction, automotive, and aerospace industries.
Plastic Extrusion:
Produces items like pipes, tubing, window frames, and films.
Food Extrusion:
Produces a wide variety of food products, including pasta, cereals, snacks, and textured vegetable protein.
3D Printing:
In some 3D printing techniques, material is extruded through a nozzle to build up 3D objects layer by layer.
4. Advantages:
Cost-effective for high-volume production.
Versatile, allowing for a wide range of shapes and sizes.
Can produce complex profiles.
Offers good material strength and surface finish.
5. Limitations:
Material constraints (not all materials can be extruded easily).
